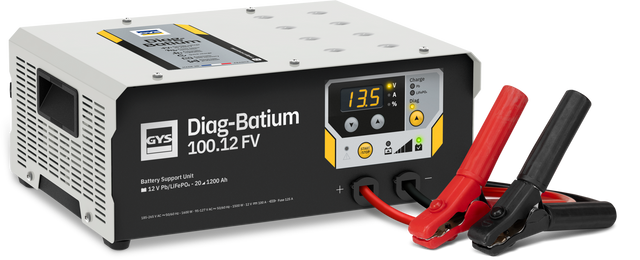

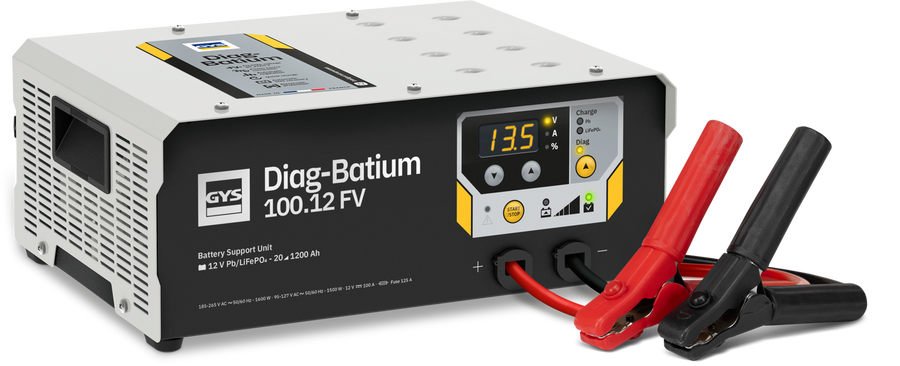

The DIAG-BATIUM 100.12 FV is a high-performance, 100A diagnostic support unit and smart charger. Engineered for the modern professional workshop, it provides a stabilized power supply during vehicle reprogramming and diagnostic testing, while offering advanced recovery modes for both Lead-Acid and Lithium (LiFePO4) batteries.
Core Capabilities
-
100A Diagnostic Support: Delivers a stable voltage (adjustable from 12V to 14.8V) to support on-board electronics during ECU remapping and diagnostics. It can maintain 90A continuously at 230V.
Dual Battery Technology: Unlike standard chargers, this unit features dedicated charging curves for both Lead-Acid (7-step) and Lithium-LFP (9-step) batteries.
-
Flexible Voltage (FV): The "FV" technology allows the unit to operate on any mains voltage between 95V and 265V, ensuring perfect performance even with long extension leads or fluctuating power grids.
-
SOS Recovery & UVP Wake-up: * Lead-Acid: Recovers deeply sulfated batteries from as low as 1V.
-
Lithium: Features a UVP Wake-up function to reactivate batteries that have entered deep discharge protection.
-
-
Unattended Safety: Microprocessor-controlled "Floating" mode allows you to leave the charger connected indefinitely to maintain battery health without risk.
Technical Specifications
| Feature | Details |
| GYS Reference | 088443 (UK Plug) |
| Input Voltage | 95V – 265V (Flexible Voltage) |
| Max Output Current | 100A |
| Continuous Output | 90A (at 230V) / 60A (at 110V) |
| Battery Range | 5Ah to 1200Ah |
| Compatible Types | AGM, Gel, Lead, Calcium, EFB, and Lithium (LiFePO4) |
| Cable Specs | 2.5m Heavy-Duty 16mm^2 |
| Dimensions / Weight | 320 x 235 x 136 mm / 5.8 kg |
