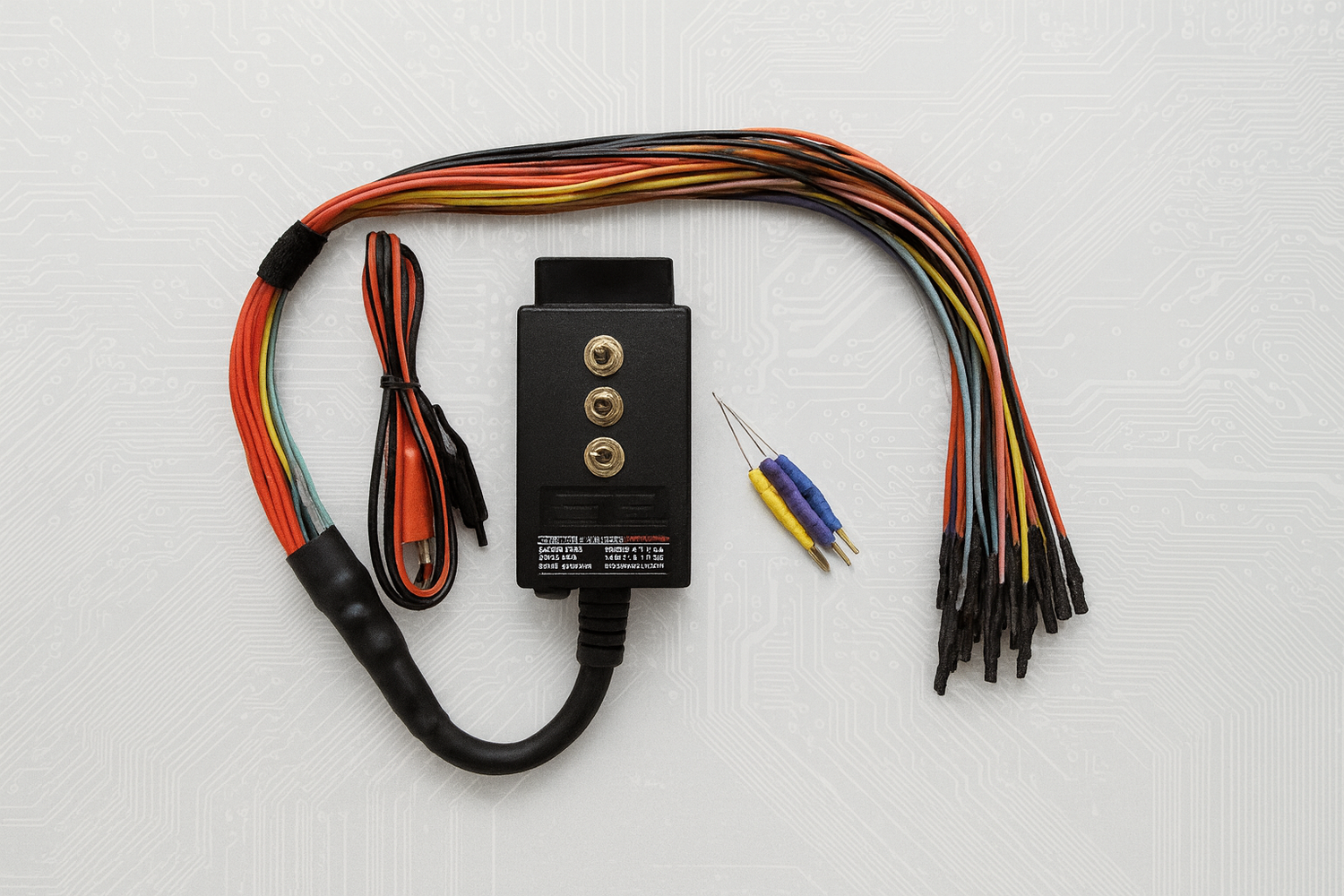

CTS - Universal ECU Breakout Cable
CTS - Universal ECU Breakout Cable
Normaler Preis
£92.40 GBP
Normaler Preis
Verkaufspreis
£92.40 GBP
Grundpreis
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
This universal pin-out cable allows you to connect easily and comfortably to most types of control units.
Now with even more connections and pin types, you can connect to a wide variety of ecus.
The cable is fitted with an OBD2 female plug allowing connection to any OBD flash tool.
Features:
Female OBD2 port
Power connections by 12V and GND crocodile clips or 2.1mm DC power jack. (Power supply not included)
Power confirmation LED indicator
6 x 12V connectors for ECU
6 x GND connectors for ECU
3 x switched ignition connectors for ECU
Switched ECU Power (ON/OFF)
Switched CAN bus termination resistors (60? / 120? / OFF)
Switch-able ignition pins (OFF / ON / K-Line) for tools using K-Line for reset function
2 x CAN Low
2 x CAN High
1 x CAN2 Low (Ford / Volvo)
1 x CAN2 High (Ford / Volvo)
2 x K-Line
1 x L-Line
1 x VPP (OBD2 Pin 13)
Kline with diode N4148 for reset function
Bootpins: 560? / 1K? / 4.7K?
