Toyota LC150 to OBD Cable – 1GD-FTV / 2GD-FTV – 1.5 m

Connect a compatible Toyota diesel ECU to an OBD interface with the Toyota LC150 to OBD Cable. This 1.5 m cable provides a direct ECU-to-OBD connection for off-vehicle workshop use on matching 1GD-FTV 2.8 litre and 2GD-FTV 2.4 litre applications.

Features

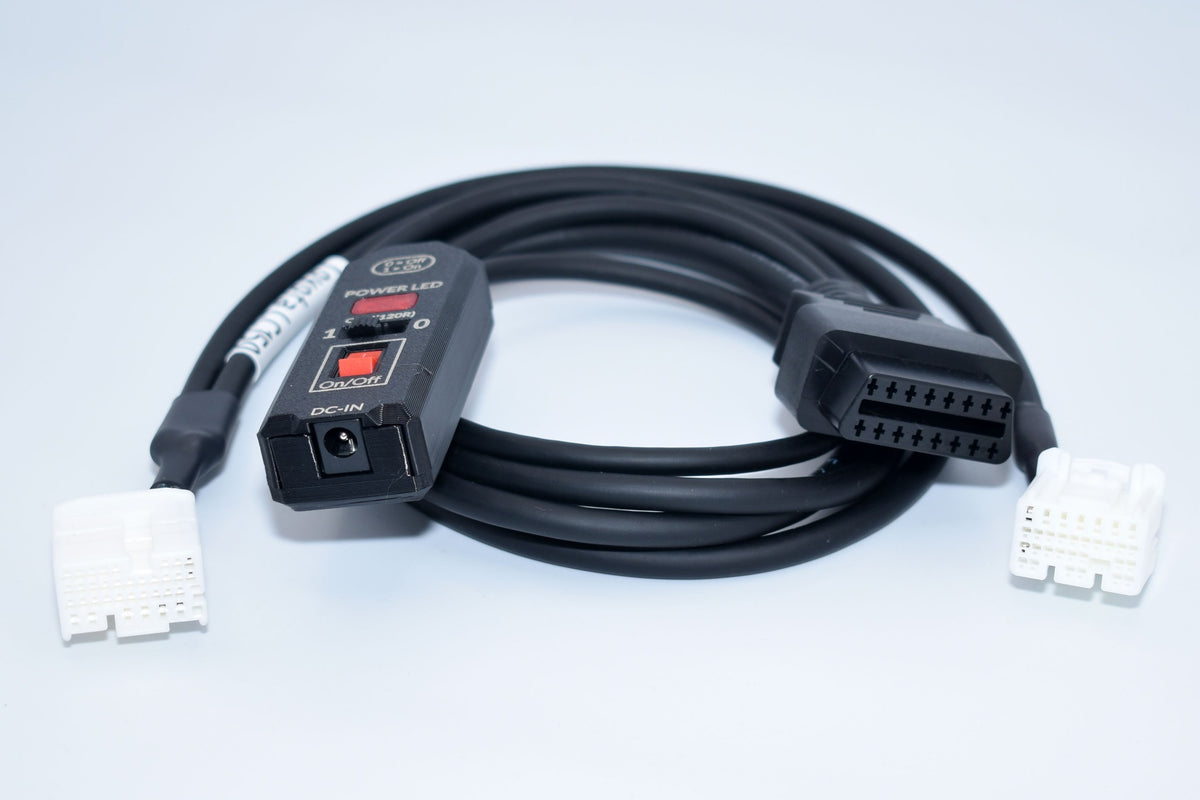

• 1.5 m cable with two ECU connectors and a female OBD socket.
• Inline control box with on/off switch, power indicator, and a standard 2.1 mm × 5.5 mm DC-IN connector.
• Selectable 120R switch, as shown in the product photograph.
• Connects a matching ECU harness connection to a compatible diagnostic or programming interface.

Vehicle compatibility

The cable application diagram identifies the following Toyota model families with GD-series diesel engines:

• Toyota Land Cruiser / Prado 150 (LC150) — 2.8 diesel, 1GD-FTV.
• Toyota Hilux / Hilux Revo — 2.4 diesel, 2GD-FTV, and 2.8 diesel, 1GD-FTV.
• Toyota Fortuner — applicable to 2.4 / 2.8 GD diesel variants.
• Toyota Hiace — applicable GD diesel variants.

Check the ECU connector layout and pinout before ordering. Compatibility depends on the fitted ECU, vehicle specification, and market; a matching model name or engine code alone does not confirm fitment. No blanket model-year coverage is implied.

Power connection

A power cable is required to connect a suitable external power supply to the standard 2.1 mm × 5.5 mm DC-IN connector.

Workshop use

Diagnostic and programming functions depend on the connected interface, software licence, and supported ECU protocol. Use the power settings and connection sequence specified by your equipment supplier. This cable provides the physical connection; it does not add unsupported protocols to a tool.

Supplied: one Toyota LC150 to OBD cable, 1.5 m. Diagnostic/programming interface, ECU, and power supply are not included.

SKU: 22124472200752
