CreativeOBD
Gender Changer, 15 Pin D-Sub, Male to Male
Product specification
| Manufacturer | CreativeOBD |
|---|---|
| Product type | Accessories |
| Title | Default Title |
Product details
Product Description

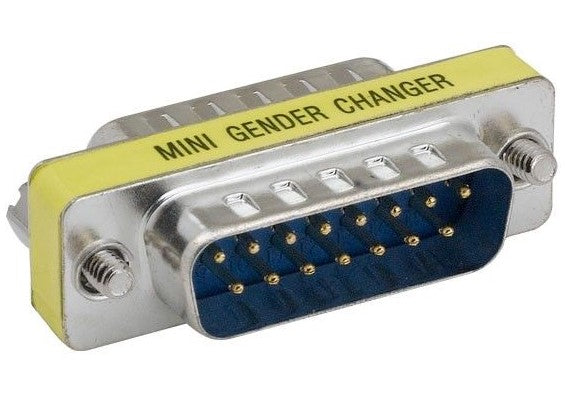

Easily adapt your connections with this 15-Pin D-Sub Gender Changer, featuring male-to-male standard D-sub connectors in a low-profile design. This adapter is equipped with brass contacts and gold over nickel contact plating for excellent conductivity and long-term reliability.
Engineered for demanding environments, it supports up to 3A current, offers a minimum insulation resistance of 1000 MΩ at 500V DC, and operates in temperatures ranging from -55°C to 105°C. Ideal for use in custom cable assemblies, data interface projects, and electronic applications requiring a secure male-to-male D-sub connection.
Technical Specifications:
- Connector Type: D-Sub Gender Changer
- Configuration: 15 Pin, Male to Male
- Contact Material: Brass with gold over nickel plating
- Current Rating: 3A
- Insulation Resistance: ≥1000 MΩ at 500V DC
- Operating Temperature: -55°C to 105°C
- Profile: Low-profile design
