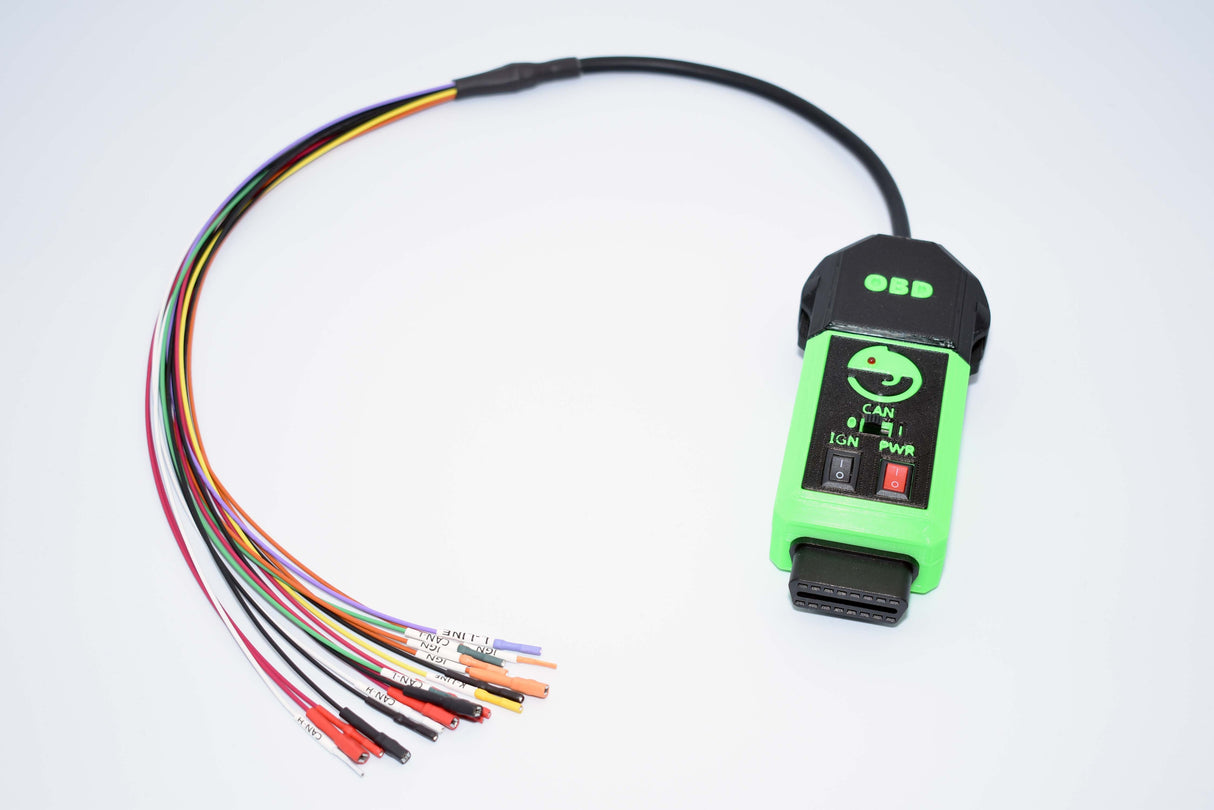

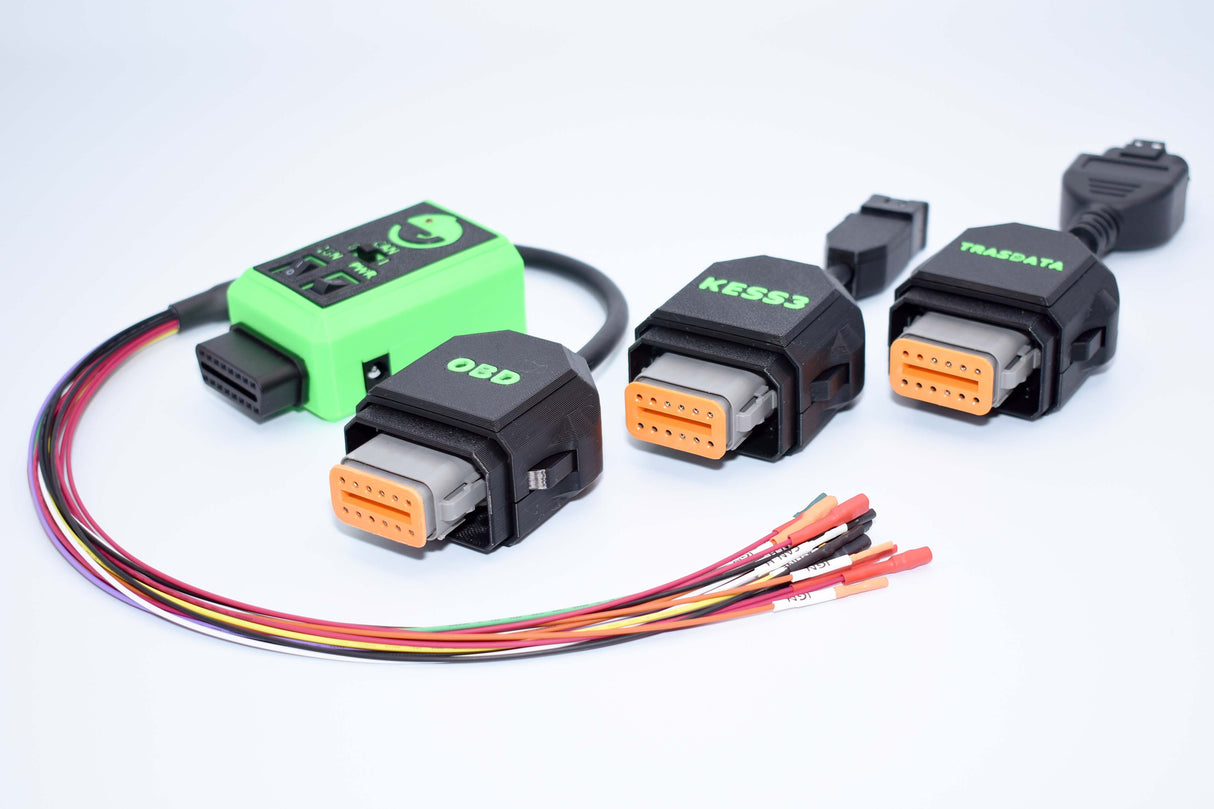

The COBD Chameleon Cable

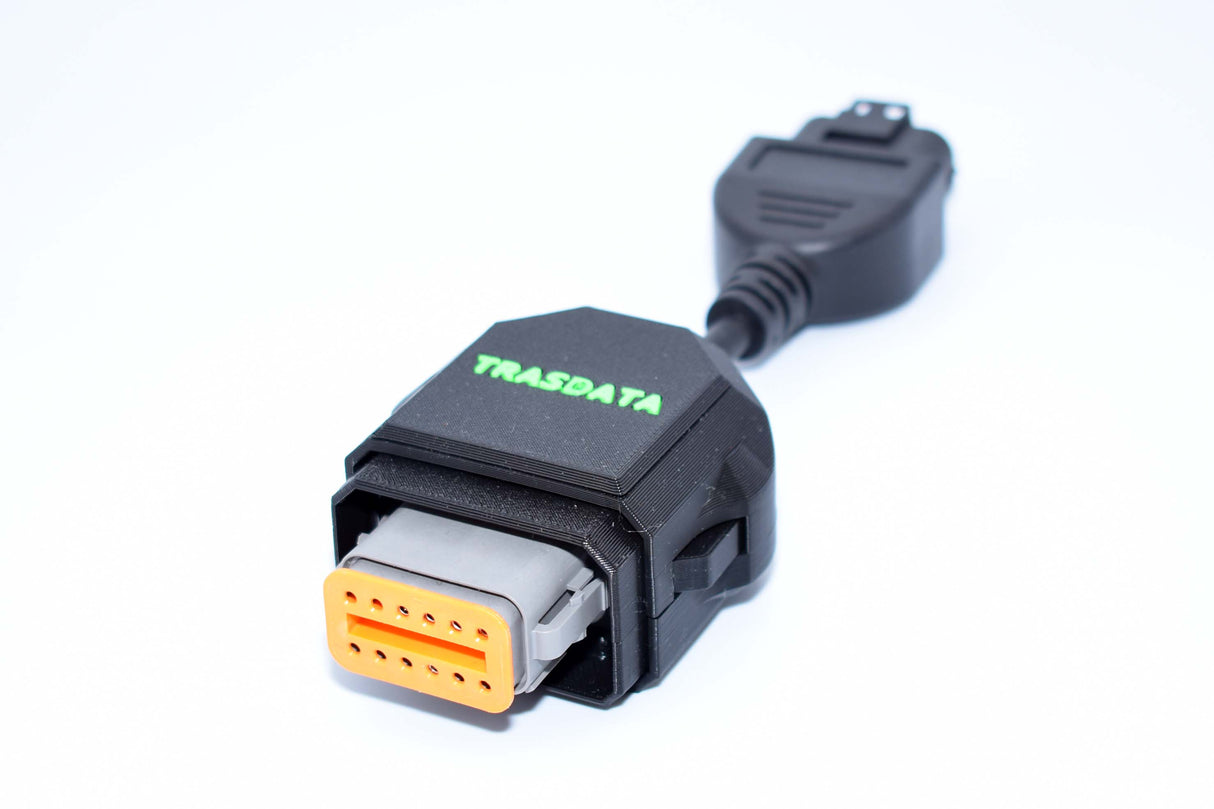

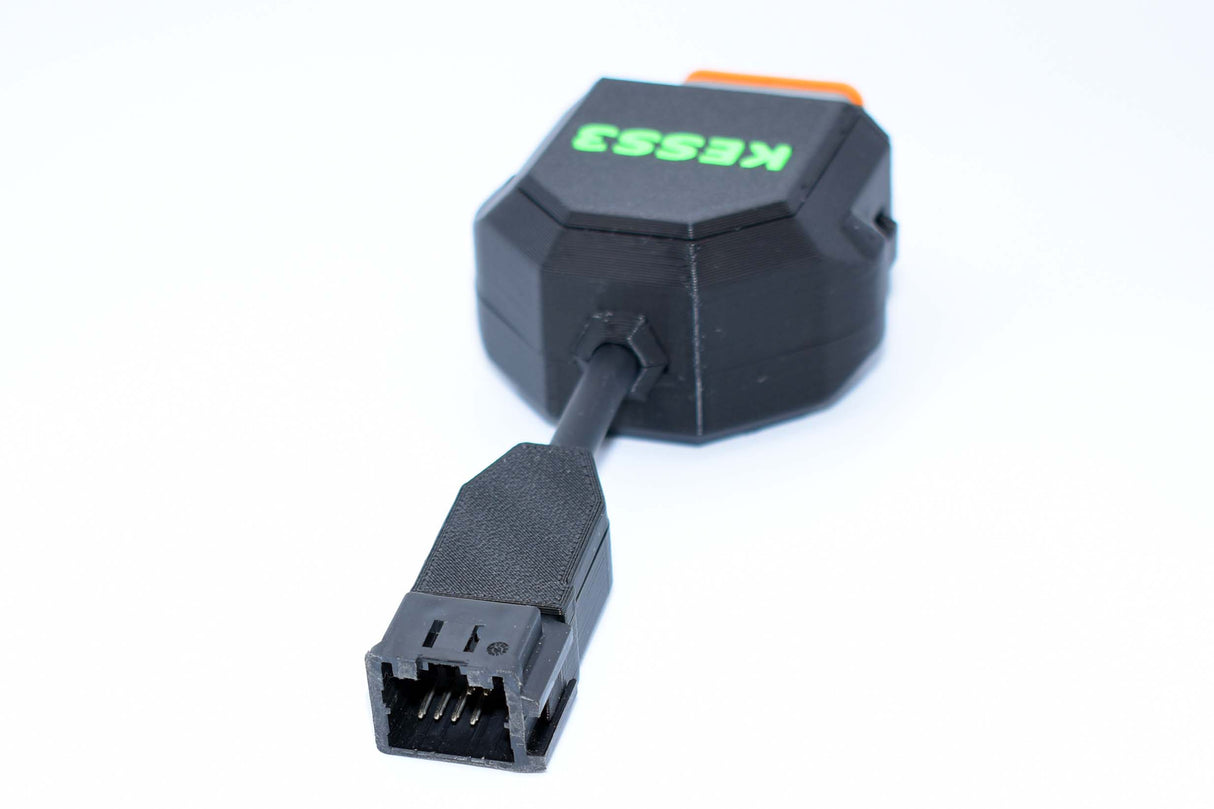

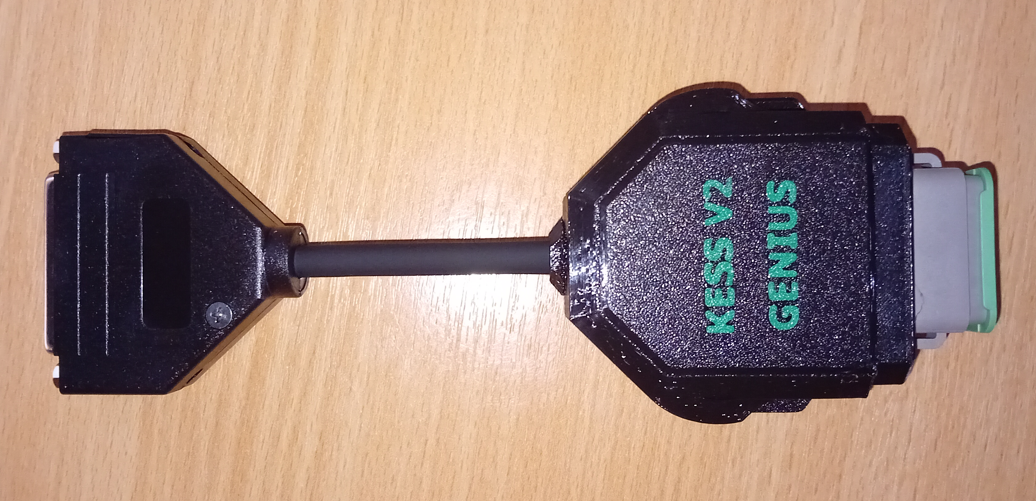

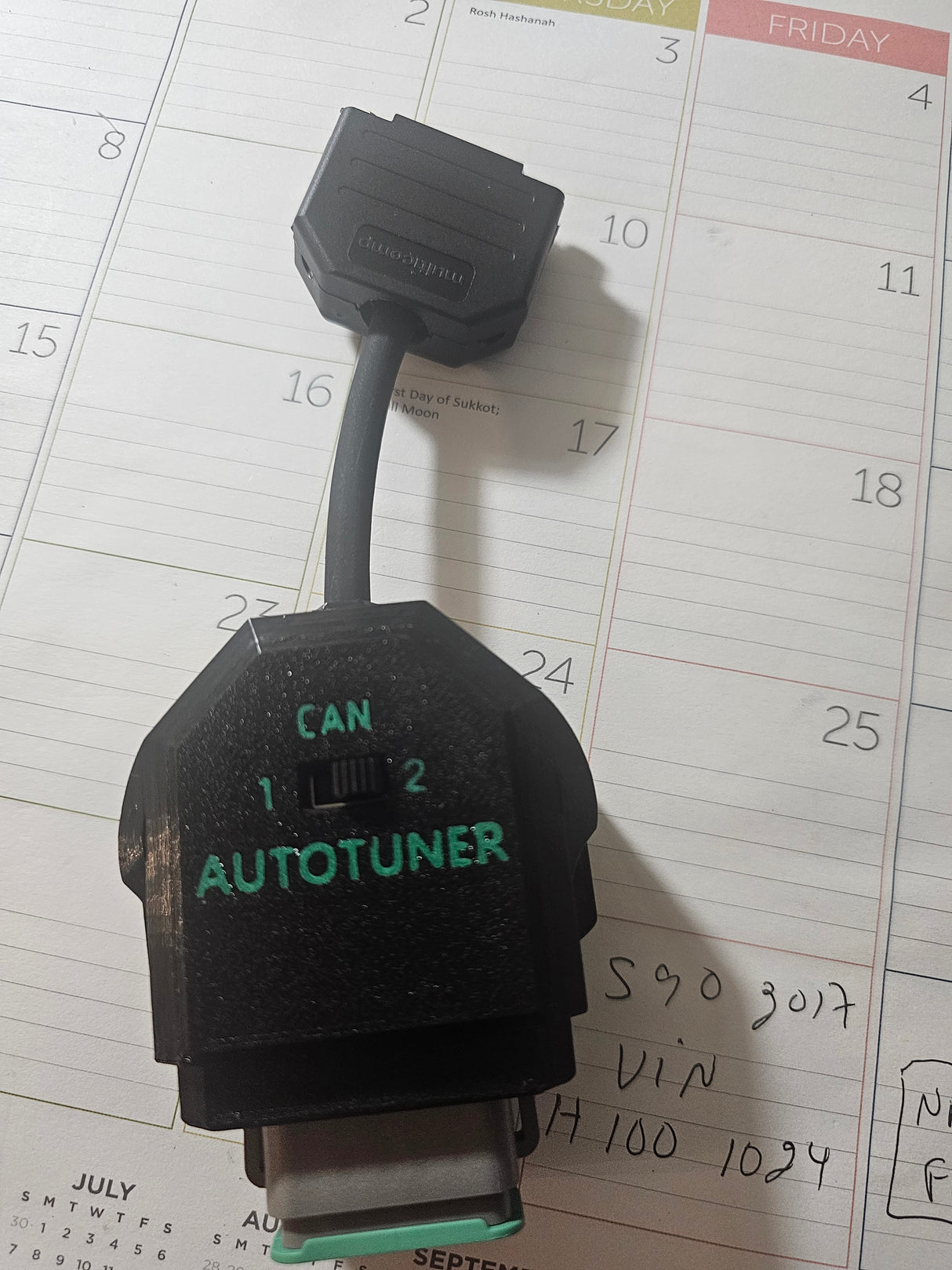

is an OBD input with the option of multiple output options. The changeable end clicks into place and is easily replaced when needed.

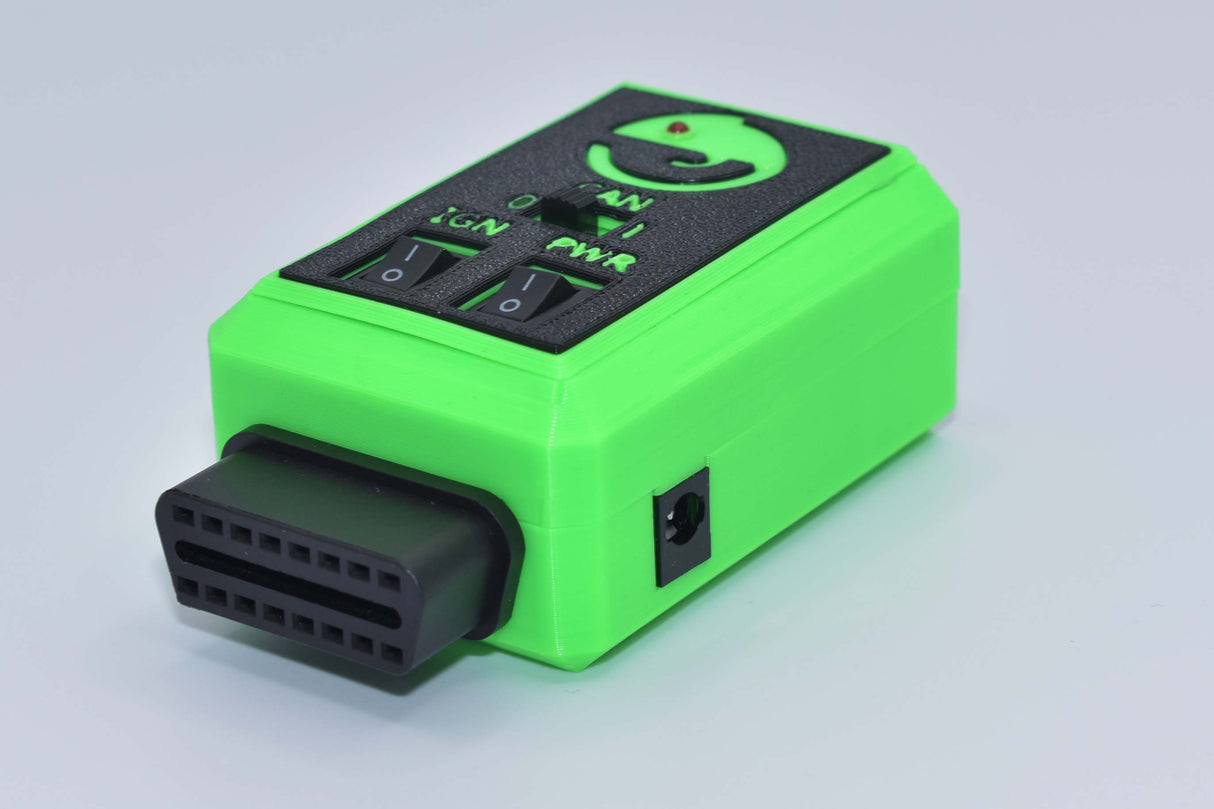

OBD in, with external power feed using a barrel-type DC 2.1mm x 5.5mm connector.

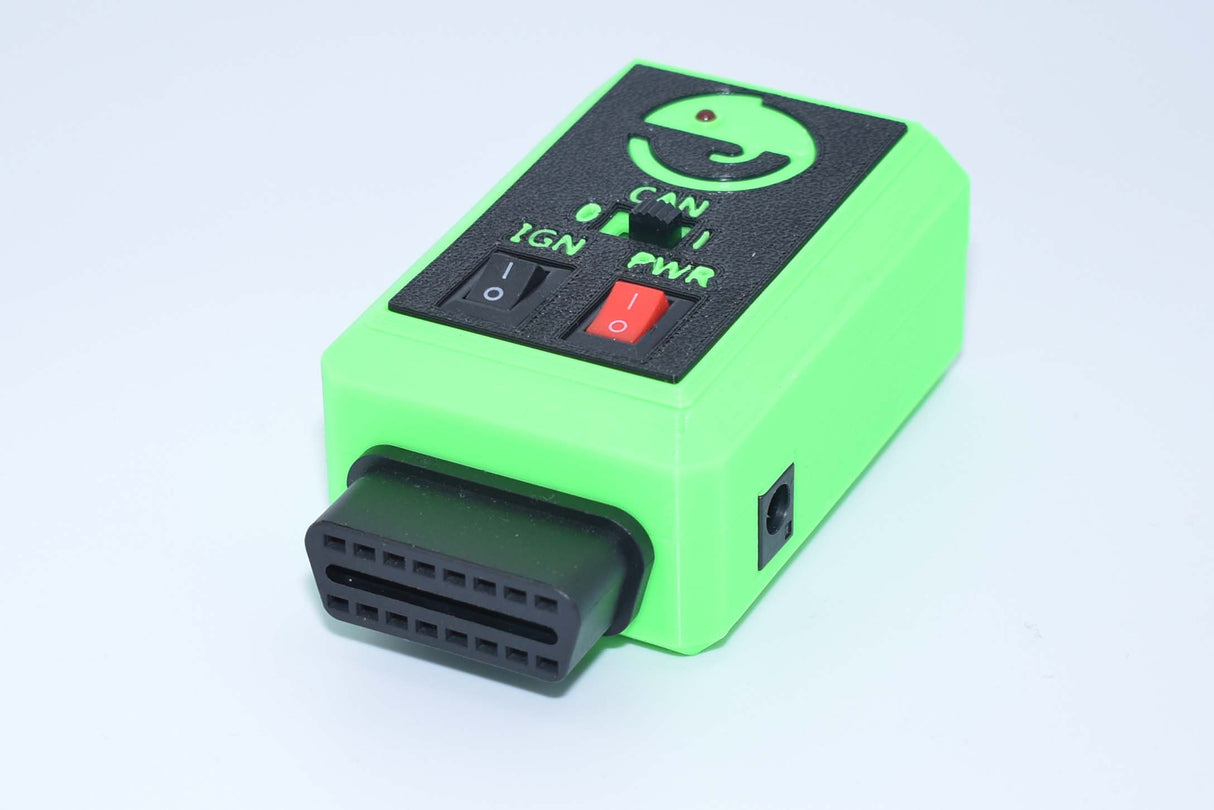

There is a power switch and power indication LED, a separate ignition switch, and a CAN resistor selector switch between 0R and 120R CAN resistors across the CAN signals.
** NOT ALL ECU's WILL WORK IN OBD MODE ON THE BENCH DUE TO IMMOBILISERS **

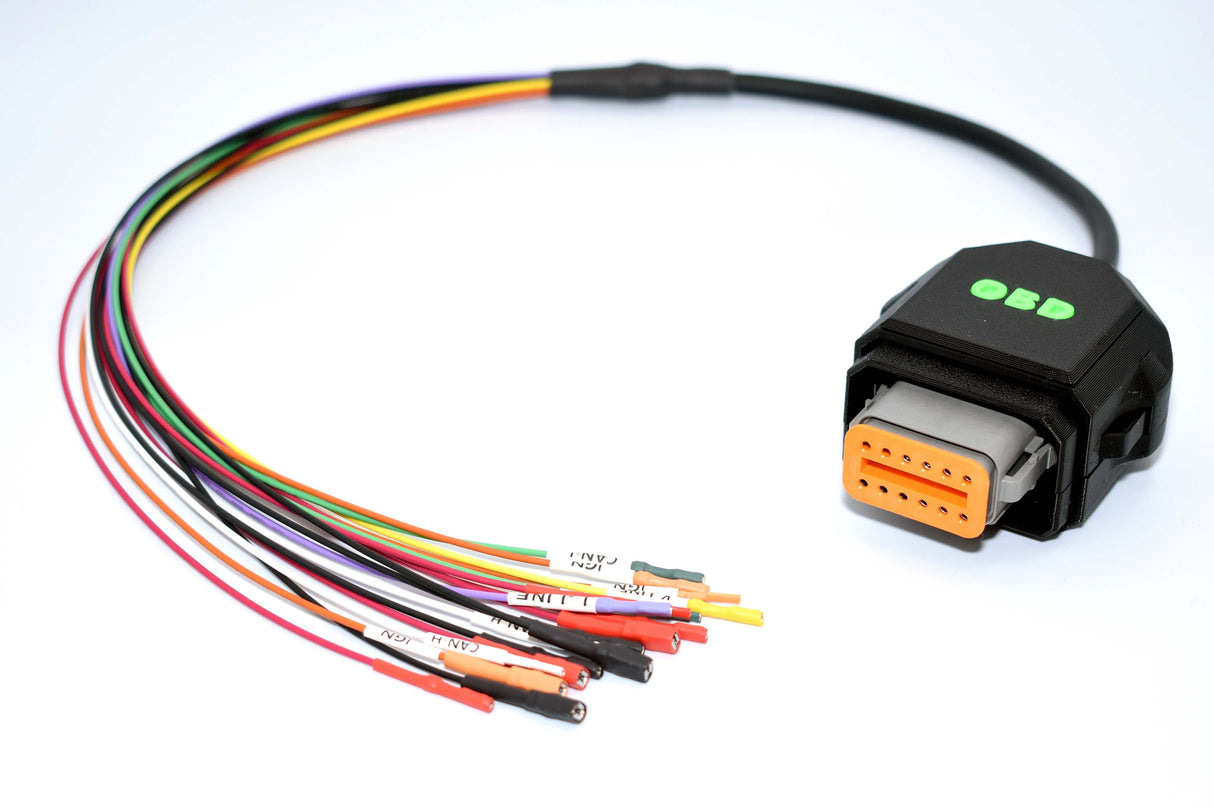

The connector used is a Deutsch 12 Pin, the Pinout is provided to allow the user to make their own cables should they need to.
12-Pin Female | Signal |
1 | Bat +12V |
2 | CAN-L |
3 | CAN-H |
4 | IGN |
5 | SAE J1850 BUS+ |
6 |
Manufacturers |
7 | Manufacturers |
8 | SAE J1850 BUS- |
9 | |
10 | GND |
11 | K-Line |
12 | L-Line |
*Designed and Created by CreativeOBD Ltd
