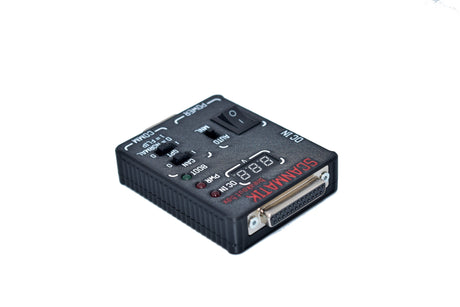

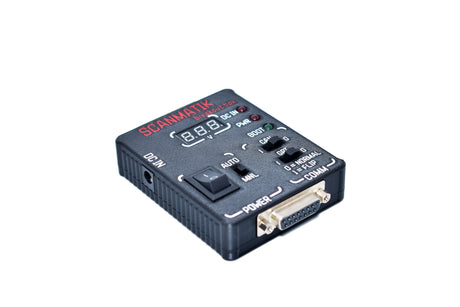

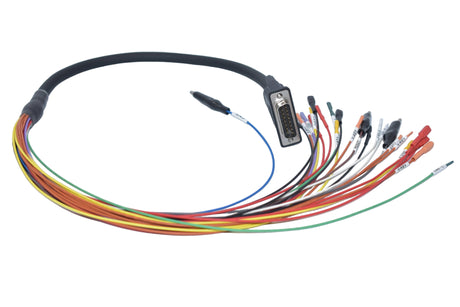

The Scanmatik DLX is the essential inline tool for professional ECU and TCU work. Designed to streamline your bench setup, it sits seamlessly between your Scanmatik and any DB15 ECU/TCU cable (breakout or direct). Enjoy safe, precise power control, live voltage monitoring, and instant CAN/GPT signal inversion—no repinning, no guesswork, just efficiency.

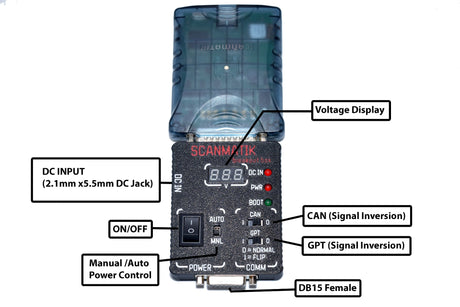

Key Features

Connector Compatibility:
- DB25 female (to Scanmatik)
- DB15 female (to ECU/TCU)
Power Input:
- 5.5×2.1 mm barrel jack (center-positive)
Power Control:
- ON/OFF rocker switch
- AUTO/MNL slide for manual or automatic power management
Live Monitoring:
- Bright 3-digit LCD for real-time ECU/TCU supply voltage
Status Indicators:
- DC IN, PWR (output active), BOOT (communication/activity) LEDs
Signal Inversion Tools:
- Dual slide switches for instant flipping/inversion of:
  • CAN-H/CAN-L
  • GPT1/GPT2
- Ideal for mixed looms and third-party adapters

Why Choose Scanmatik DLX?

Instantly correct reversed CAN/GPT pairs or “no comms” issues—no need to open connectors
Safely bring up bench ECUs/TCUs with visible voltage and hard power cut-off
Drop-in compatibility with existing breakout looms and adapters
Designed for professional reliability and workflow speed

Quick Start

Connect DB25 to Scanmatik, DB15 to ECU/TCU.
Plug in DC supply, select AUTO or MNL mode, then toggle ON.
If communication fails, use the CAN or GPT FLIP switches and retry.

Best Practices

Always verify supply voltage and polarity before enabling power.
Ensure both connectors are fully seated before switching ON.

Pinout (Based on KTAG / PowerBox)

Pinout Male DB15	signal

1
2	VPP
3	GPT2
4	CNF1
5	12V_OUT
6
7	CAN-H
8	BOOT2
9
10	BOOT2
11	GND
12	GPT1
13
14	K-LINE
15	CAN-L
