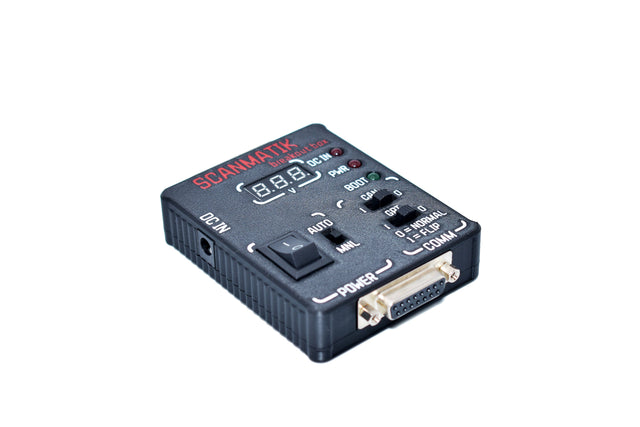

The Scanmatik DLX is the essential inline tool for professional ECU and TCU work. Designed to streamline your bench setup, it sits seamlessly between your Scanmatik and any DB15 ECU/TCU cable (breakout or direct). Enjoy safe, precise power control, live voltage monitoring, and instant CAN/GPT signal inversion—no repinning, no guesswork, just efficiency.

Key Features

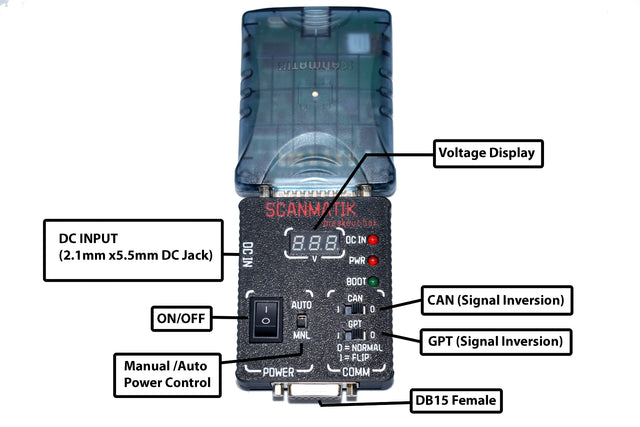

  • Connector Compatibility:
    • DB25 female (to Scanmatik)
    • DB15 female (to ECU/TCU)
  • Power Input:
    • 5.5×2.1 mm barrel jack (center-positive)
  • Power Control:
    • ON/OFF rocker switch
    • AUTO/MNL slide for manual or automatic power management
  • Live Monitoring:
    • Bright 3-digit LCD for real-time ECU/TCU supply voltage
  • Status Indicators:
    • DC IN, PWR (output active), BOOT (communication/activity) LEDs
  • Signal Inversion Tools:
    • Dual slide switches for instant flipping/inversion of:
      • CAN-H/CAN-L
      • GPT1/GPT2
    • Ideal for mixed looms and third-party adapters

Why Choose Scanmatik DLX?

  • Instantly correct reversed CAN/GPT pairs or “no comms” issues—no need to open connectors
  • Safely bring up bench ECUs/TCUs with visible voltage and hard power cut-off
  • Drop-in compatibility with existing breakout looms and adapters
  • Designed for professional reliability and workflow speed

Quick Start

  1. Connect DB25 to Scanmatik, DB15 to ECU/TCU.
  2. Plug in DC supply, select AUTO or MNL mode, then toggle ON.
  3. If communication fails, use the CAN or GPT FLIP switches and retry.

Best Practices

  • Always verify supply voltage and polarity before enabling power.
  • Ensure both connectors are fully seated before switching ON.

Pinout (Based on KTAG / PowerBox)

Pinout Male DB15 signal
1
2 VPP
3 GPT2
4 CNF1
5 12V_OUT
6
7 CAN-H
8 BOOT2
9
10 BOOT2
11 GND
12 GPT1
13
14 K-LINE
15 CAN-L
