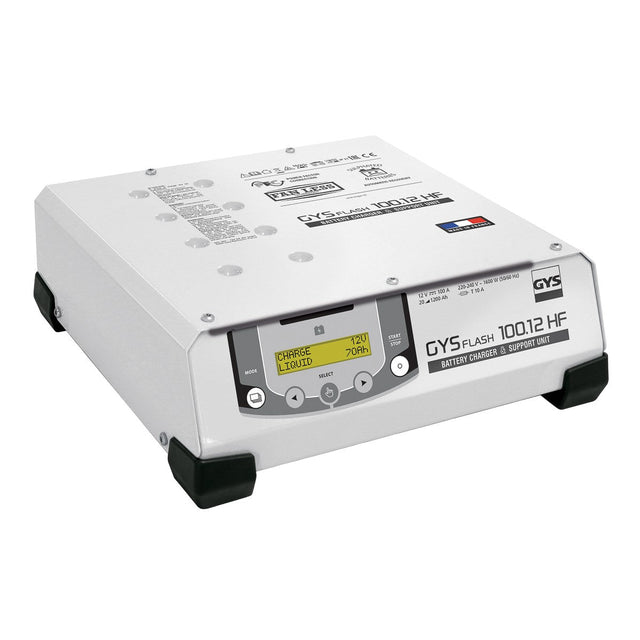

GYSFLASH 100.12 HF 100A Battery Support Charger – 5m Cables
Product specification
| Manufacturer | GYSflash |
|---|---|
| Product type | Battery Support |
| Title | Default Title |
Product details
The GYSFLASH 100.12 HF is more than a charger — it’s essential equipment for technicians carrying out vehicle diagnostics. With modern vehicles relying on complex electronics, maintaining a stable voltage is non‑negotiable. The GYSFLASH 100.12 HF (Ref. 029002) keeps battery voltage fully stabilised, even during high‑drain diagnostic sessions.
5 versatile operating modes
- Diagnostic Mode: Provides up to 100A of stabilised power to support 12V batteries during electronic diagnostic work.
- Advanced Charging: Uses a 9‑step charging curve for lead‑acid batteries (AGM, Gel, Liquid, Calcium) and lithium (LiFePO4) batteries from 20 to 1200Ah.
- Showroom Mode: Discreetly maintains battery health in dealership vehicles. Its slim profile (<11cm) allows it to fit easily under the chassis.
- Battery Change: Works as a “memory saver” to preserve vehicle settings and ECU data while the battery is disconnected.
- Power Supply: Converts the unit into a high‑performance stabilised power supply with adjustable voltage and current.
Key technical features
- Inverter technology: High efficiency with a 75A duty cycle at 100% (25°C).
- Fanless design: No external ventilation means no dust ingress, helping extend lifespan in harsh workshop environments.
- SOS Recovery: Automatically recovers deeply discharged or sulphated batteries.
- Automatic restart: Resumes the last used mode after a power cut.
- Extended reach: Supplied with 2 × 5m 16mm² cables for maximum flexibility around the vehicle.
Specifications at a glance
- Voltage: 12V
- Output: 100A
- Cable length: 5.0m
- Protection rating: IP21
- Weight: 6.1kg (unit only)
