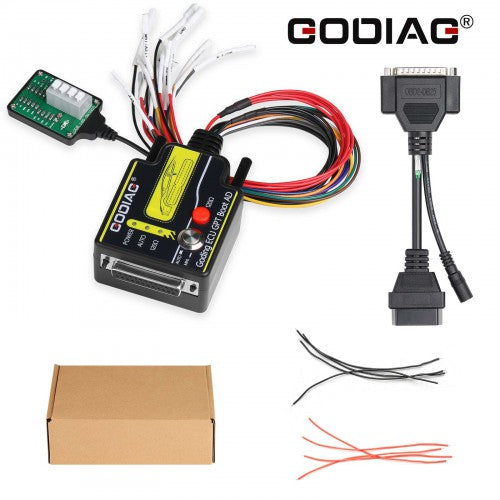

GODIAG E-CU GPT Boot AD Programming Adapter

can help customers read and write ECU data without disassembling the ECU by using the OBD2 Bench or GPT Bench method, or disassembling the ECU and using the Boot method.

This product is equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU. Customers can use it with J2534 devices and PCMFlash software.

Product Features:

• ECU dedicated connection terminal.
• Supports manual ignition power control.
• The ECU interface cable is labelled.
• Supports ECU conversion to OBD2 mode to read and write data.
• Supports RESET, BOOT, CNF1, GPT1, GPT2, 5V, 3.3V, VPP, GND.
• Supports PCMFlash automatic control of ignition power supply.
• Supports ECU opening BOOT method to read and write data.
• CAN bus is equipped with a switch to freely select the 120 ohm resistor.
• Supports GPT to read and write data without disassembling the ECU.
• Equipped with BOOT resistance board connecting cable (anti-lost resistor design).

Product Functions:

• Diagnostic function supports standard OBD2 protocol equipment.
• Supports ECU reading and writing data, and supports J2534 devices.
• With Scanmatik 2 PRO for PCMFlash, supports GPT1 and GPT2 signals necessary to work with Module 71.
• Other devices Scanmatik OpenPort 2.0, Mongoose JLR, MongoosePro JLR, Teradyne GNA600 (VCM 1), and Mazda VCM 2 support OBD2 or BOOT 53 mode to read and write ECU data.

*Above description direct from the manufacturer
