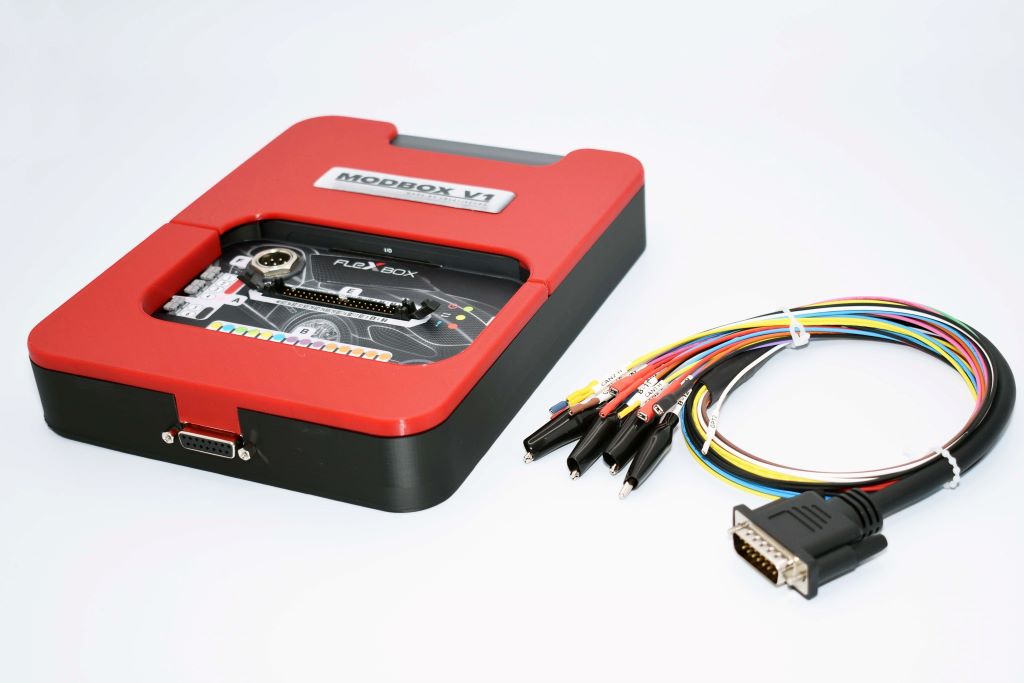

Flex - ModBox V1 Kit

Flex - ModBox designed and made by CreativeOD Ltd

If you want bench cables for the MODBOX, these need to be specifically requested via support@creativeobd.co.ukÿ

This is an add-on enclosure for the existing MMS Flex tool to convert the Flex Box to use a DB15 connector and standard breakout cable. This product saves a lot of time on setup and also protects your tool whilst in the casing.ÿ

The Flex tool is easily removable for OBD work whilst the Flex Box can remain in the enclosure for easier bench mode connections.

The front cover is easily removableÿif there isÿa need for signals not exposed on the DB15.ÿ

• Support for bench cables (Need to be Requested)

Ports exposed to DB15 bench mode application:

Connections internally as below

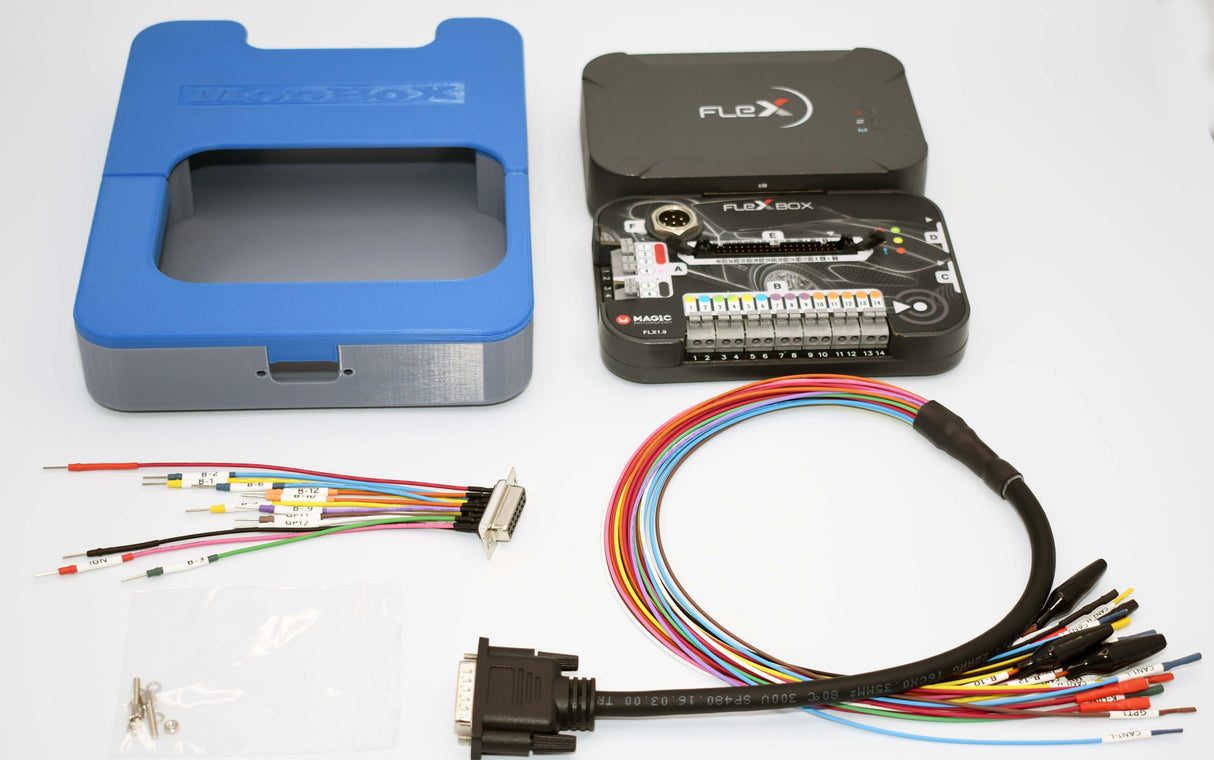

This Kit Includes:

1 x ModBox, with covers and non-slip rubber feet

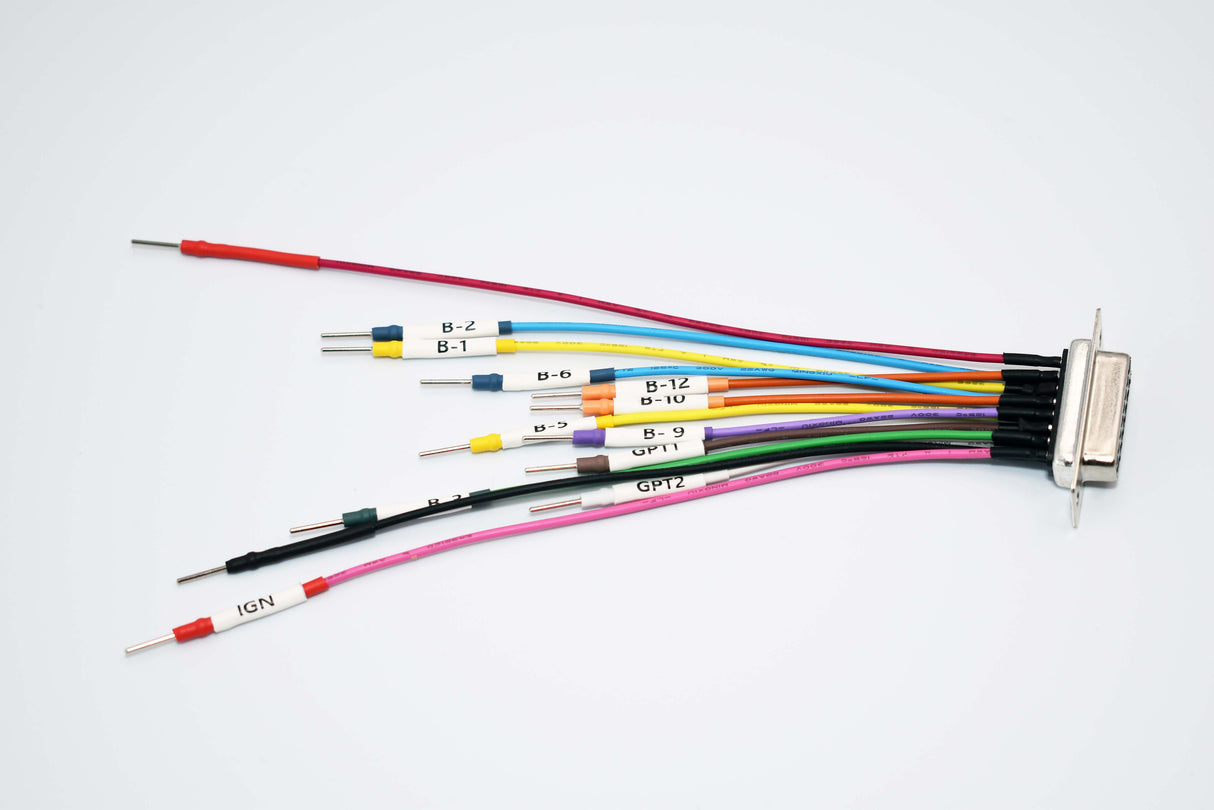

1 x DB15 (Internal) cable and fixings for fitment

1 x DB15 breakout (External) with integrated micro pins
