CreativeOBD

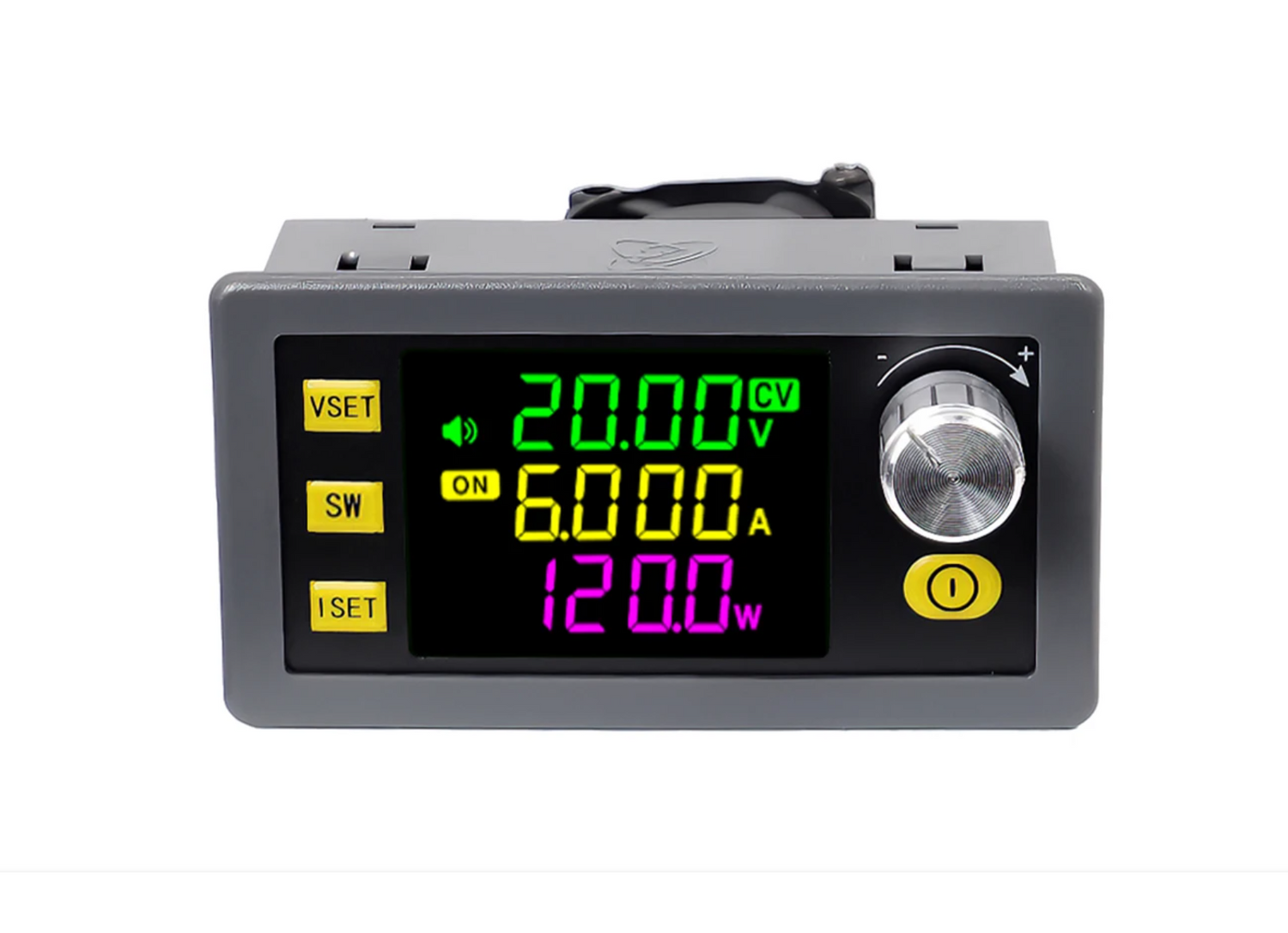

Digital Adjustable Voltage Regulator

Digital Adjustable Voltage Regulator

Regular price £20.00 GBP
Regular price £27.50 GBP Sale price £20.00 GBP
Sale Sold out
Shipping calculated at checkout.

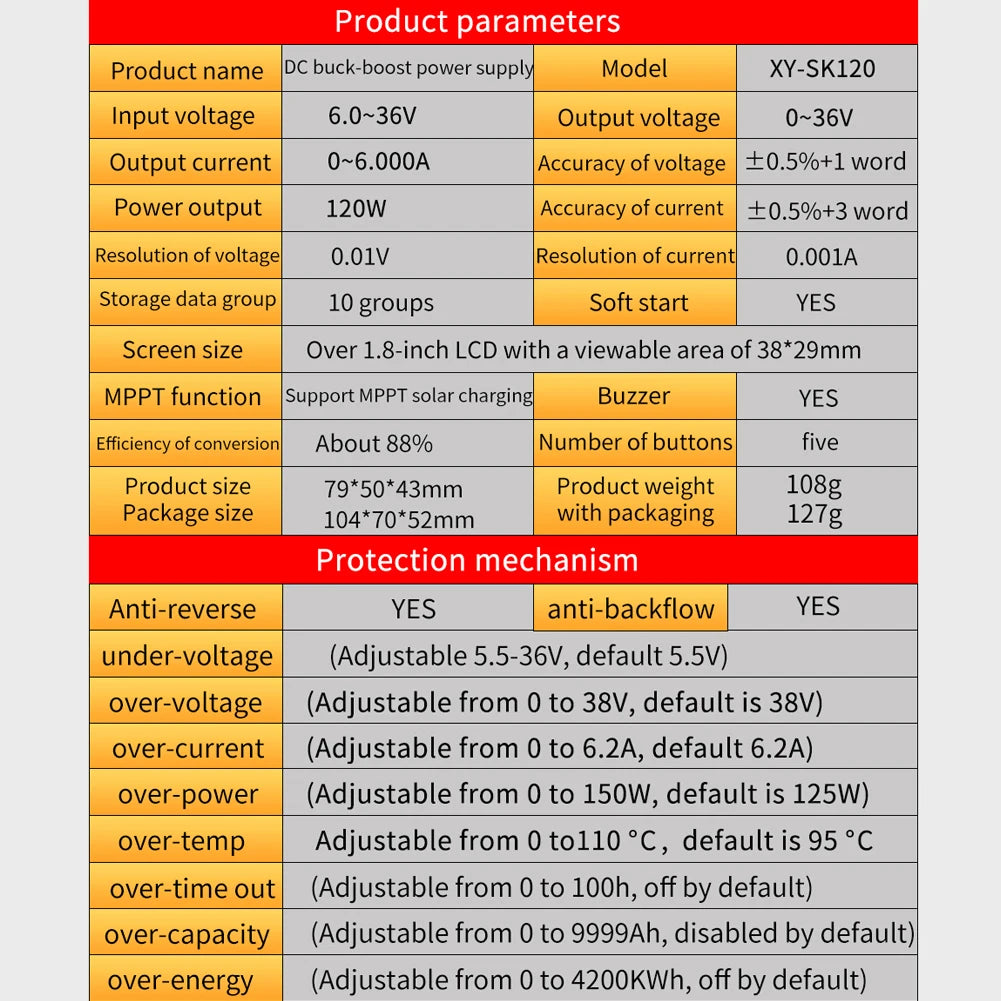

Specifications:

Name: Power Regulator

Material: plastics

Display: 38*29mm LCD display

Input voltage: 6.0-36V

Output voltage: 0-36V

Output current: 0-6.000A

Voltage accuracy: ±0.5%+1 word

Output power: 120W

Current accuracy: ±0.5%+3 words

Voltage resolution: 0.01V

Current resolution: 0.001A

Storage data group: 10 groups

Number of keys: 5

Buzzer: Yes

Conversion efficiency: 88% or so

Soft starting: Yes

Maximum Power Point Tracking function: Support Maximum Power Point Tracking solar charging

Protective mechanism:

Input reverse connection protecting: Yes

Output backflow protecting: Yes

Input undervoltage protective value: (5.5-36V adjustable, default 5.5V)

Output over-voltage protective value: (0-38V adjustable, default 38V)

Output over-current protective value: (0-6.2A adjustable, default 6.2A)

Output over power protective value: (0-150W adjustable, default 125W)

Over-temperature protective value: (0-110℃ adjustable, default 95℃)

Timeout protective value: (0-100H adjustable, default off)

Overcapacity protective value: (0-9999AH adjustable, default off)

Over energy protective value: (0-4200KWH adjustable, default off)

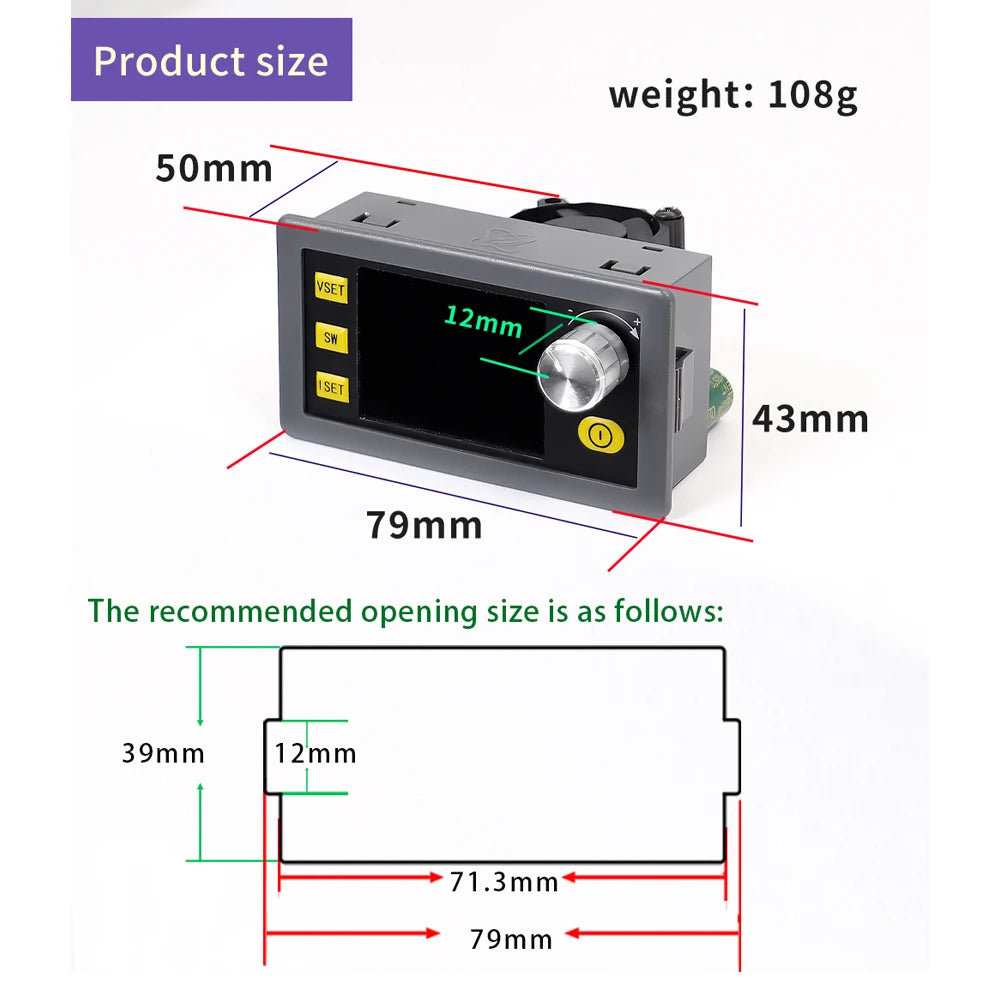

Item size: 79 * 50 * 43mm / 3.11 * 1.97 * 1.69in

Item weight: 108g / 3.81ounce

Package size: 104 * 70 * 52mm / 4.09 * 2.76 * 2.05in

Package weight: 127g / 4.48ounce


Packing List:

1 * Power supply
