CreativeOBD  |  SKU: 22124472200740

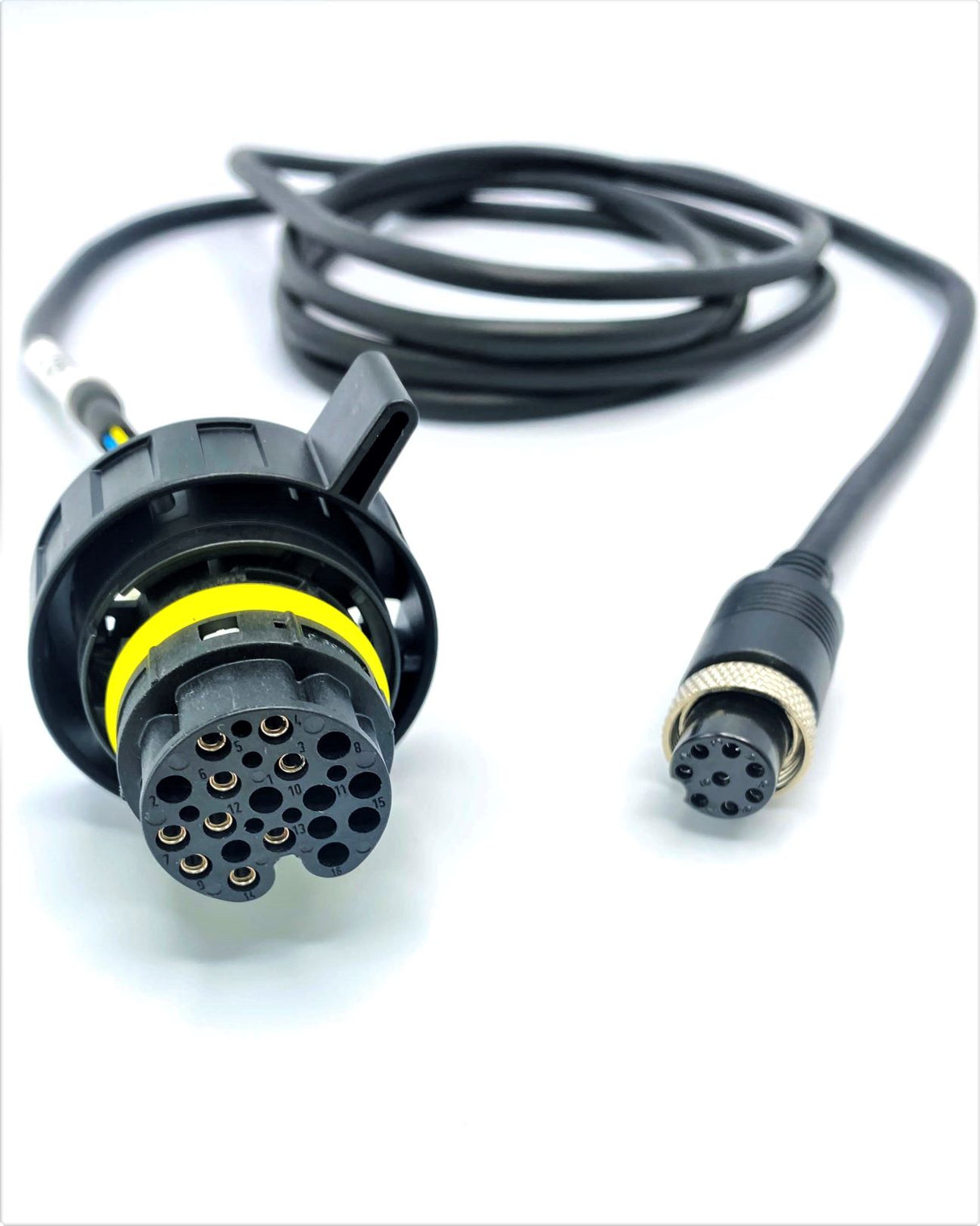

ZF 8HP / ALx52 TCU Bench Programming Cable

$96.00 VAT Not Collected
International VAT and customsOrders shipped outside the UK are not charged UK VAT. Import VAT, customs duties and carrier clearance fees are charged locally on entry into the receiving country where applicable, and are the recipient's responsibility.
Shipping calculated at checkout.
In stock

Normally dispatched within 1–2 working days.

Tool
Length
  • CreativeOBD cables are assembled in Winsford, UK
  • Individually continuity-tested before dispatch
  • Technical support for product selection

Current product options

Tool
Autotuner, bFlash, CMD, DFOX, FLEX, KESS3, KTAG
Length
1.5m, FULL LENGTH, 2.5m

These options are read from the current product configuration and update automatically when variants change.

Not sure this is the correct cable?

Send us the ECU or TCU reference, your programming tool and a clear label photo before ordering.

Ask CreativeOBD →

Description

Bench programming cable for supported Bosch ZF 8HP and selected AL-series transmission control units.

Choose the option that matches your tuning tool for a direct connection to the TCU during supported read, write, repair and cloning workflows.

Supported families

  • ZF 8HP45, 8HP50, 8HP55, 8HP65, 8HP70, 8HP75, 8HP76 and 8HP90 where supported
  • Selected AL450, AL551, AL552 / ALx52 and AL951 units
  • CreativeOBD-checked ZF 8HP Type 1, Type 2 and Type 3 units using SH725xx processors; not for TC275 variants
  • Tool-end termination is supplied according to the selected live product option
  • Hand-assembled and continuity-tested in the UK by CreativeOBD.

2022+ note: Later ALx52 / AL552 Gen 2 units may require a dedicated interface-specific cable. Confirm the TCU generation and selected product option.

Important: Tool functions and protocol coverage vary by TCU hardware and software version. Select the correct tool option and confirm support in your tool manufacturer's current vehicle list before use.

Delivery and urgent orders

The availability panel above shows the expected dispatch status. Delivery service times begin after dispatch and are not guaranteed. Contact us before ordering if a cable is required urgently.
