CreativeOBD  |  SKU: COBDA01323

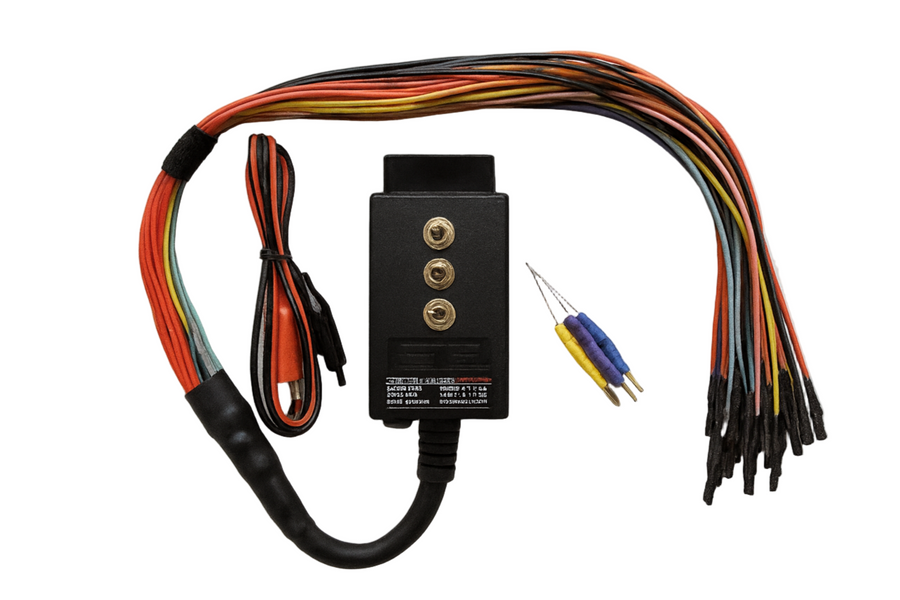

CTS - Universal ECU Breakout Cable

$128.00 VAT Not Collected
International VAT and customsOrders shipped outside the UK are not charged UK VAT. Import VAT, customs duties and carrier clearance fees are charged locally on entry into the receiving country where applicable, and are the recipient's responsibility.
Shipping calculated at checkout.
In stock

Normally dispatched within 1–2 working days.
  • CreativeOBD cables are assembled in Winsford, UK
  • Individually continuity-tested before dispatch
  • Technical support for product selection
Not sure this is the correct cable?

Send us the ECU or TCU reference, your programming tool and a clear label photo before ordering.

Ask CreativeOBD →

Description

Product Description
Universal ECU breakout cable for bench flashing, diagnostics, and programming. Supports multiple pinouts, OBD2 flash tools, switched ignition, CAN/K-Line, bootpins, and power options—built for pro tuners and busy workshops.
Key Benefits
  • Universal compatibility: Connects to a wide range of ECUs, pinouts, and protocols
  • OBD2 ready: Female OBD2 port for seamless use with most flasher tools
  • Flexible power: 12V/GND crocodile clips or 2.1mm DC jack (power supply not included)
  • Instant status: Built-in power LED for quick confirmation
  • Faster workflow: Switchable ignition, CAN termination, and K-Line reset to cut setup time
What’s Included
  • CTS Universal ECU Breakout Cable
  • Integrated female OBD2 port
  • Built-in switches for ignition, CAN termination, and K-Line reset
Technical Features
  • Power options: 12V + GND crocodile clips, or 2.1mm DC jack
  • Power indicator: LED status light
  • ECU power distribution:
    • 6 × 12V connectors
    • 6 × GND connectors
    • 3 × switched ignition connectors
    • Switched ECU power (ON/OFF)
  • Network and comms:
    • Switched CAN bus termination resistors: 60Ω / 120Ω / OFF
    • 2 × CAN Low, 2 × CAN High
    • 1 × CAN2 Low/High (Ford/Volvo)
    • 2 × K-Line, 1 × L-Line, 1 × VPP (OBD2 Pin 13)
    • K-Line with 1N4148 diode for reset
  • Bootpins (selectable): 560Ω / 1kΩ / 4.7kΩ
Applications
  • Bench flashing/programming
  • Diagnostics and ECU testing
  • Workshop development and troubleshooting
Who It’s For
  • Professional ECU tuners
  • Automotive workshops
  • Diagnostic technicians
Why Choose This Cable
  • Broad ECU coverage in one tool—reduce adapter swaps
  • Faster, cleaner setup with labeled connections and onboard switching
  • Built for reliability in daily workshop use
Compatibility Notes
  • Works with most OBD flash tools via female OBD2 port
  • Low-voltage use for diagnostics/programming only; not for permanent in-vehicle installation
  • External power supply required (not included)
