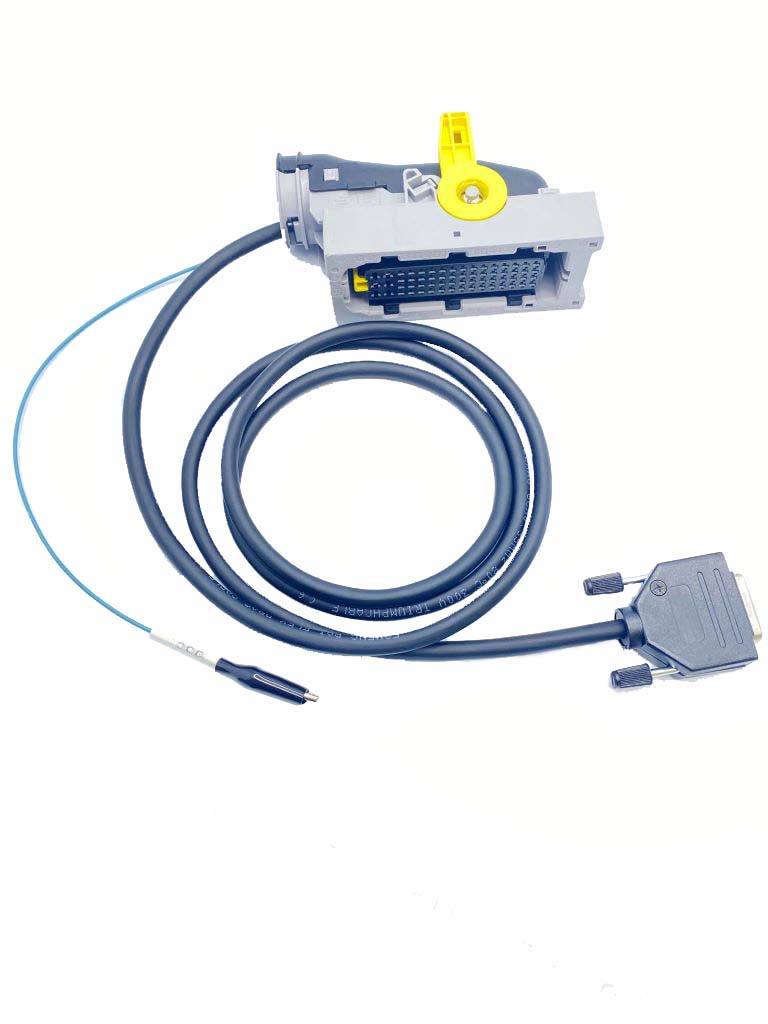

Volvo ACM MPC5534 Bench BAM Cable
Product specification
| Manufacturer | CreativeOBD |
|---|---|
| Product type | Bench Cable |
| Tool | KESS3 |
| Length | 1.5m |
Product details
CONTINENTAL ACM MPC5534 BAM VOLVO TRUCK Bench Boot Cable – 1.5m | ECU Programming & Diagnostic Cable
Unlock efficient and reliable ACM (DEF) module programming for Volvo trucks with the CONTINENTAL ACM MPC5534 BAM Bench Boot Cable. Designed for professional workshops and chip tuning specialists, this cable enables direct connection to Continental ACM ECUs—eliminating the risk of pin damage and significantly reducing setup time during bench operations.
Key Features
- Direct ACM Connection: Engineered specifically for Continental ACM (DEF) modules with MPC5534 BAM processors in Volvo trucks.
- Pin Protection: Secure connector design prevents bending or damaging delicate ACM pins during repeated use.
- Time-Saving Design: Streamlined for fast, hassle-free bench programming and diagnostics—because time is money.
- Professional Quality: Manufactured and tested by CreativeOBD Ltd, trusted for premium diagnostic and remapping cables.
- Compatible with Leading Tools: Works seamlessly with KTAG, KESS3, and TRASDATA flasher tools for ACM programming and diagnostics.
- Standard Cable Length: Approx. 1.5 metres (5 feet), ideal for flexible bench setups.
Important Usage Note
- CFG Signal Required: This cable requires the ACM ECU to be opened. The CFG (configuration) signal must be connected to the correct point on the board, following your flasher tool manufacturer’s instructions.
- Professional Use Only: Intended for skilled technicians familiar with ECU/ACM boot procedures.
Compatible Vehicles & Modules
This bench boot cable is designed for:
- Volvo Trucks equipped with Continental ACM (DEF) modules, MPC5534 BAM processors
Common applications include:
- ACM (Aftertreatment Control Module) programming and diagnostics
- DEF system troubleshooting and repair
- Bench boot operations for Volvo heavy-duty trucks
Always confirm your ACM module and tool compatibility before purchase.
Applications
- Bench Programming & Boot Mode: Enables secure flashing, remapping, and recovery of Continental ACM ECUs on the bench.
- Diagnostics & Troubleshooting: Supports advanced diagnostics for DEF and aftertreatment systems in Volvo trucks.
- Workshop & Field Use: Ideal for commercial vehicle service centers, tuning professionals, and independent diagnostic technicians.
Benefits
- Plug-and-Play: Ready to use out of the box—no custom wiring or adapters required.
- Pin Safety: Prevents costly damage to ACM connectors, ensuring long-term hardware reliability.
- Time-Efficient: Designed to reduce setup time and streamline your workflow for busy professionals.
- Versatile Compatibility: Works with industry-leading flasher tools for programming and diagnostics.
Why Buy from CreativeOBD Ltd?
- UK-based specialist in custom ECU and ACM remapping and diagnostic cables
- Rigorous product testing for reliability and performance
- Fast shipping, expert support, and a reputation for quality in the automotive industry
Confirm the pinout before purchase.
