Delphi DCM 7.24 JCB to OBD Bench Cable
Product specification
| Manufacturer | CreativeOBD |
|---|---|
| Product type | Bench Cable |
| Title | Default Title |
Product details

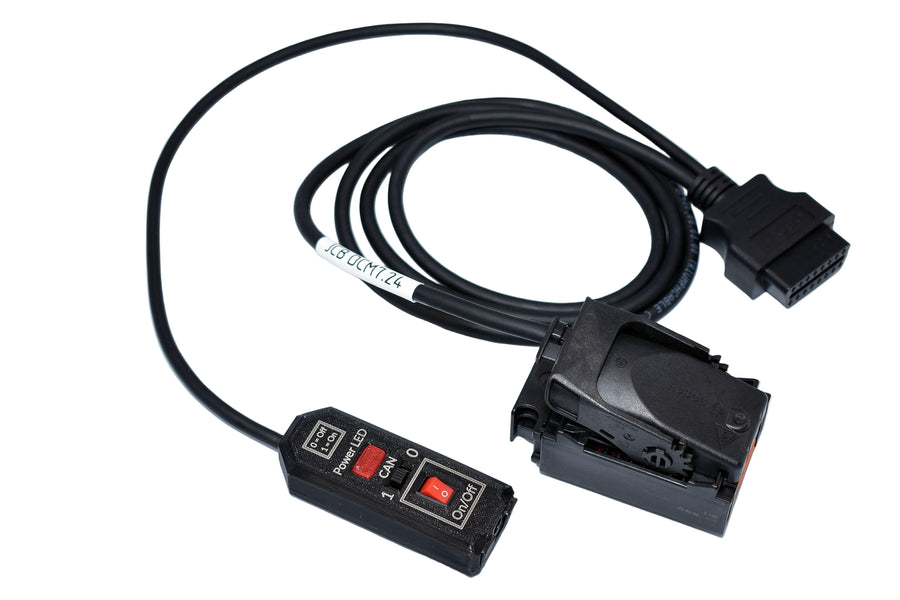

Delphi DCM 7.24 to OBD Bench Cable – JCB
Engineered for professional bench programming, diagnostics, and ECU testing on JCB vehicles equipped with Delphi DCM 7.24 engine control units.
Specifications
- ECU Side: Custom-pinned for Delphi DCM 7.24
- Diagnostic Side: Standard OBD-II male connector
- Power Input: 2.1mm x 5.5mm barrel-type DC jack (external power supply required)
- Switched Power: Integrated power switch for safe, controlled ECU power cycling
- CAN Bus: Toggle switch for 120Ω CAN termination resistor, ensuring stable communication during bench operations
- Cable Construction: Automotive-grade, shielded for EMI protection and durability
- Length: 1.2m standard (custom options available)
- Identification: Clearly labelled pinout and function markings for error-free use
Technical Details
- Direct ECU-to-OBD Connection: Enables seamless communication between Delphi DCM 7.24 ECUs and standard OBD-II diagnostic tools or programming interfaces.
- Power Management: External DC power input with switched output allows for safe handling and prevents accidental power cycles during programming or diagnostics.
- CAN Bus Termination: Toggleable 120Ω resistor provides proper CAN bus termination, critical for reliable bench communication and accurate diagnostics.
Supported Vehicles
- JCB (with Delphi DCM 7.24 ECU)
Key Benefits
- Purpose-built for Bench Work: Simplifies ECU programming, cloning, and diagnostics without requiring the vehicle harness.
- Safe and Reliable: Power and CAN termination switches protect both the ECU and diagnostic equipment.
- Professional Quality: Manufactured and tested to CreativeOBD’s high standards for repeatable, reliable results.
Typical Use Cases
- ECU bench programming (read/write/clone)
- Diagnostics and troubleshooting
- Tuning and calibration
- ECU repair and recovery
